6 Square Hotplate Electric Boiling Top – 24kW - from Mareno

6 Square Hotplate Electric Boiling Top

The 6 square hotplate electric boiling top provides six independent electric cooking positions for restaurants, hotels, central kitchens and commercial catering facilities.

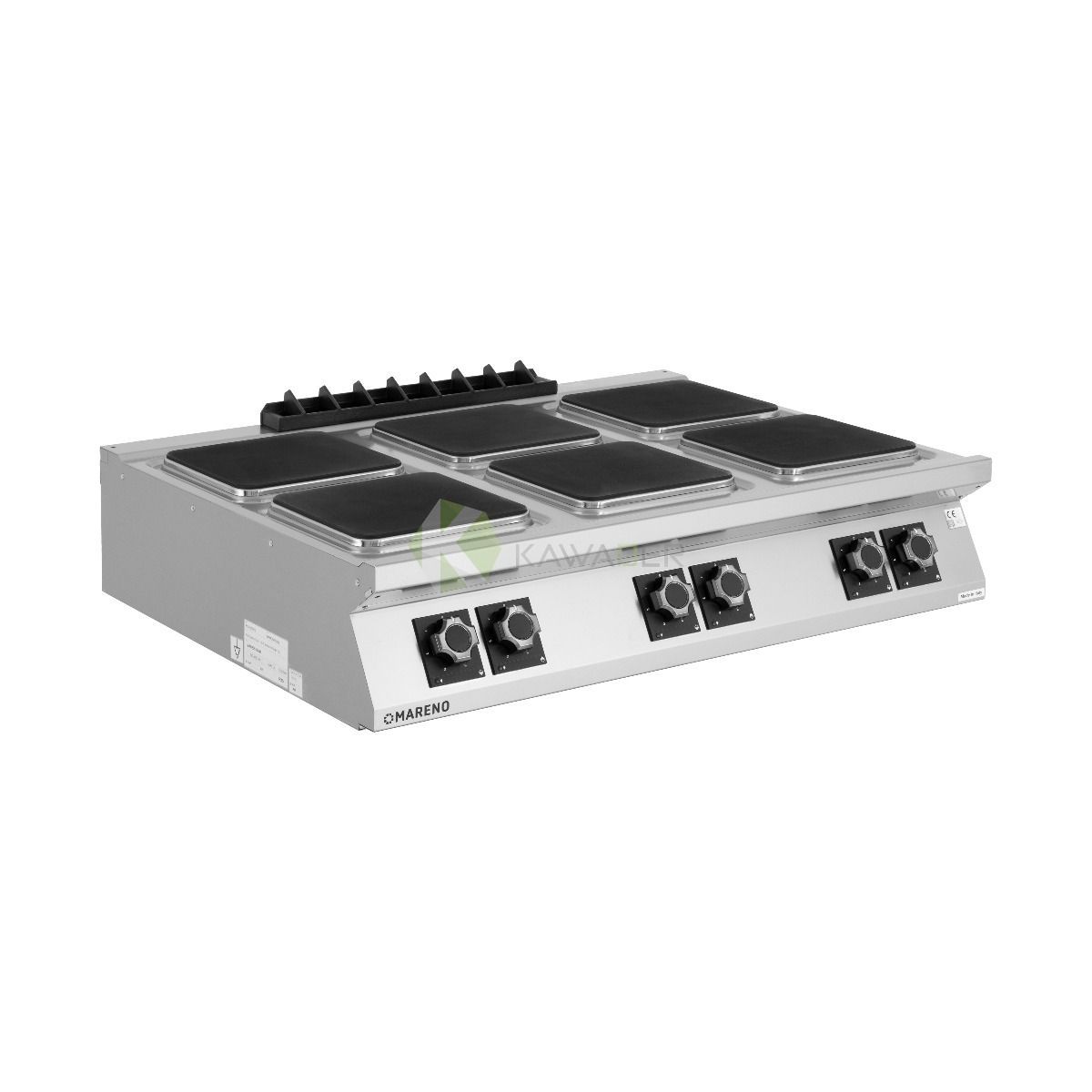

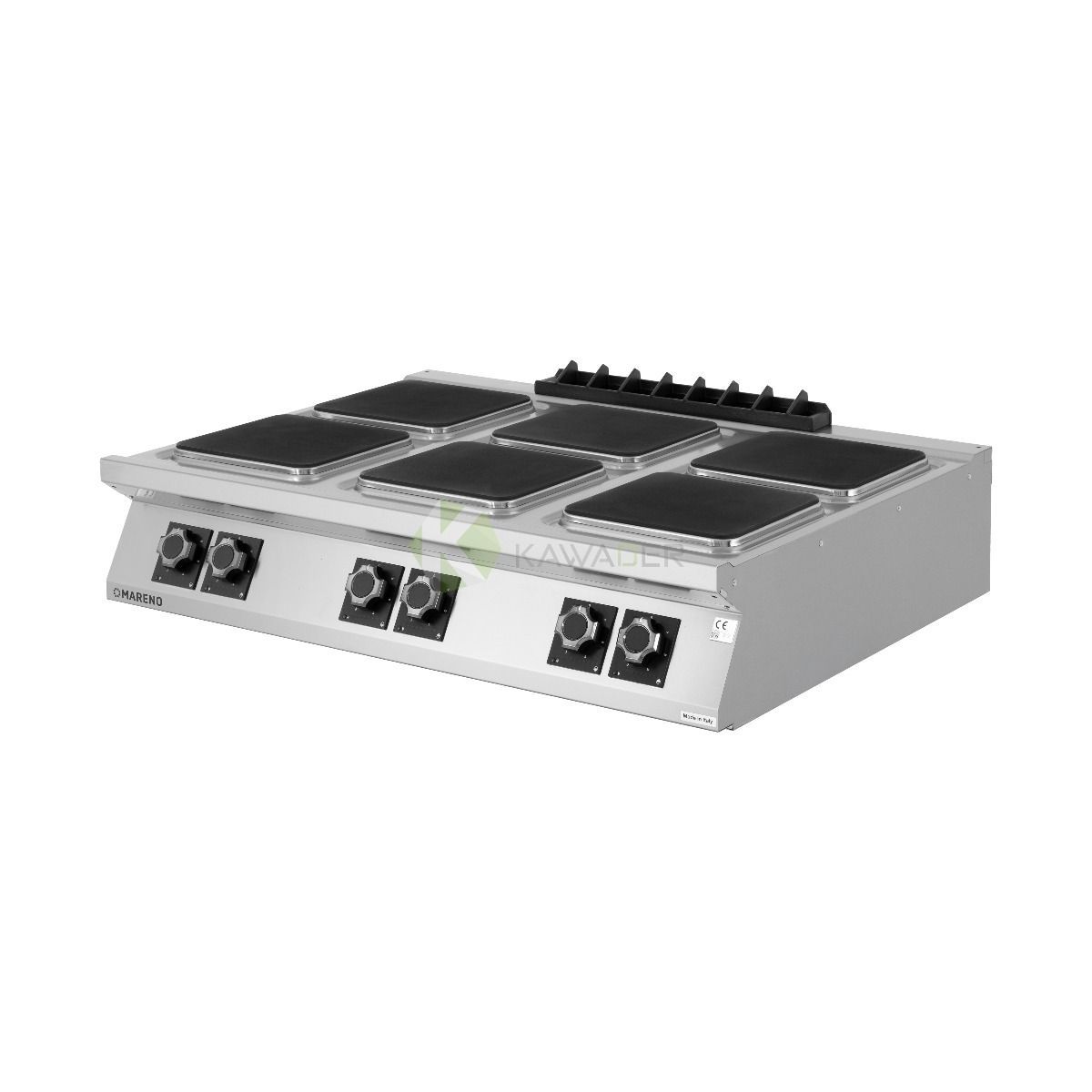

The appliance includes six square cast iron hotplates, each measuring 300×300mm and rated at 4kW. The combined electrical power is 24kW.

Each hotplate is hermetically sealed to the top and features seven-position heat adjustment together with an automatic-reset safety thermostat.

Six Cast Iron Hotplates

The 6 cast iron hotplate cooker allows several pots and pans to operate simultaneously during commercial food preparation.

Each square hotplate measures 300×300mm, providing a practical surface for compatible commercial cookware used for boiling, simmering, heating and general cooking tasks.

Benefits of the Six-Plate Layout

The appliance supports:

• Simultaneous operation of several cooking vessels.
• Separation of different cooking tasks.
• High-volume commercial kitchen workflows.
• Better organisation of the hot cooking line.
• Preparation of several menu items at once.
• Reduced dependence on separate cooking appliances.

300×300mm Square Hotplates

The 300x300mm square hotplate range provides six evenly sized cooking positions.

The square cast iron plates are sealed to the appliance top, creating an integrated cooking surface. Suitable cookware with stable, flat bases should be used to maintain proper contact with each hotplate.

The cooking surface should be allowed to cool before cleaning, following the manufacturer’s maintenance instructions.

4kW Output per Hotplate

Each hotplate has a rated output of 4kW, providing commercial heating power for different stovetop applications.

With six plates, the appliance has a stated total electrical power of 24kW.

A compatible electrical supply and installation must be provided according to the voltage, frequency and power requirements.

Seven-Position Heat Adjustment

The Mareno electric boiling top provides seven heat settings for each cooking plate.

This allows operators to select an appropriate output level for boiling, simmering, heating or maintaining food at the required cooking stage.

Heat Control Benefits

• Multiple power settings.
• Better control of heating intensity.
• Adjustment for different cookware and products.
• Easier movement between cooking stages.
• Reduced need to operate continuously at maximum output.

Automatic-Reset Safety Thermostat

Each hotplate is equipped with an automatic-reset safety thermostat.

The thermostat helps protect the cooking plate if abnormal overheating occurs. Once safe operating conditions return, the system can reset automatically according to the appliance design.

Professional electrical installation and routine maintenance remain essential for safe and reliable operation.

24kW Commercial Electric Cooktop

The 24kW commercial electric cooktop operates on a 380V, 60Hz electrical supply.

Due to its total power requirement, the appliance requires a suitable dedicated circuit, electrical protection and grounding system.

Installation should be completed by a qualified technician according to the equipment specifications and applicable electrical requirements.

120cm Electric Cooking Top

The 120cm electric cooking top is designed for integration into commercial cooking lines that require multiple electric cooking positions.

It can be installed alongside other professional equipment, subject to the required clearances, electrical connection and ventilation arrangements.

Main Product Features

• Six square electric hotplates.
• Cast iron hotplate construction.
• Each hotplate measures 300×300mm.
• 4kW output per hotplate.
• Total power of 24kW.
• Seven-position heat adjustment.
• Automatic-reset safety thermostat.
• Hermetically sealed hotplates.
• 380V electrical supply.
• 60Hz frequency.
• Suitable for commercial kitchens.

Suitable Commercial Applications

Restaurants and Commercial Kitchens

The unit supports several cooking tasks and multiple cookware items during busy service periods.

Hotels and Central Kitchens

Its six independent hotplates suit larger facilities preparing several dishes simultaneously.

Catering Operations

The appliance can be integrated into hot-food production lines requiring multiple electric cooking zones.

Institutional Food Service

It is suitable for facilities that rely on electricity and require a high-capacity commercial cooking surface.

Technical Specifications

• Product type: Commercial electric boiling top.
• Model: PC912ETPQ.
• Number of hotplates: Six.
• Hotplate shape: Square.
• Hotplate material: Cast iron.
• Hotplate dimensions: 300×300mm each.
• Output per hotplate: 4kW.
• Total power: 24kW.
• Heat adjustment: Seven positions.
• Safety system: Automatic-reset thermostat.
• Voltage: 380V.
• Frequency: 60Hz.
• Dimensions as provided: W120 × D920 × H40.
• Weight: 116kg.

Why Choose This Electric Boiling Top?

This appliance is suitable for commercial kitchens requiring six independent electric cooking zones. Its cast iron plates, seven-position controls and automatic-reset safety thermostats support organised daily cooking operations.
