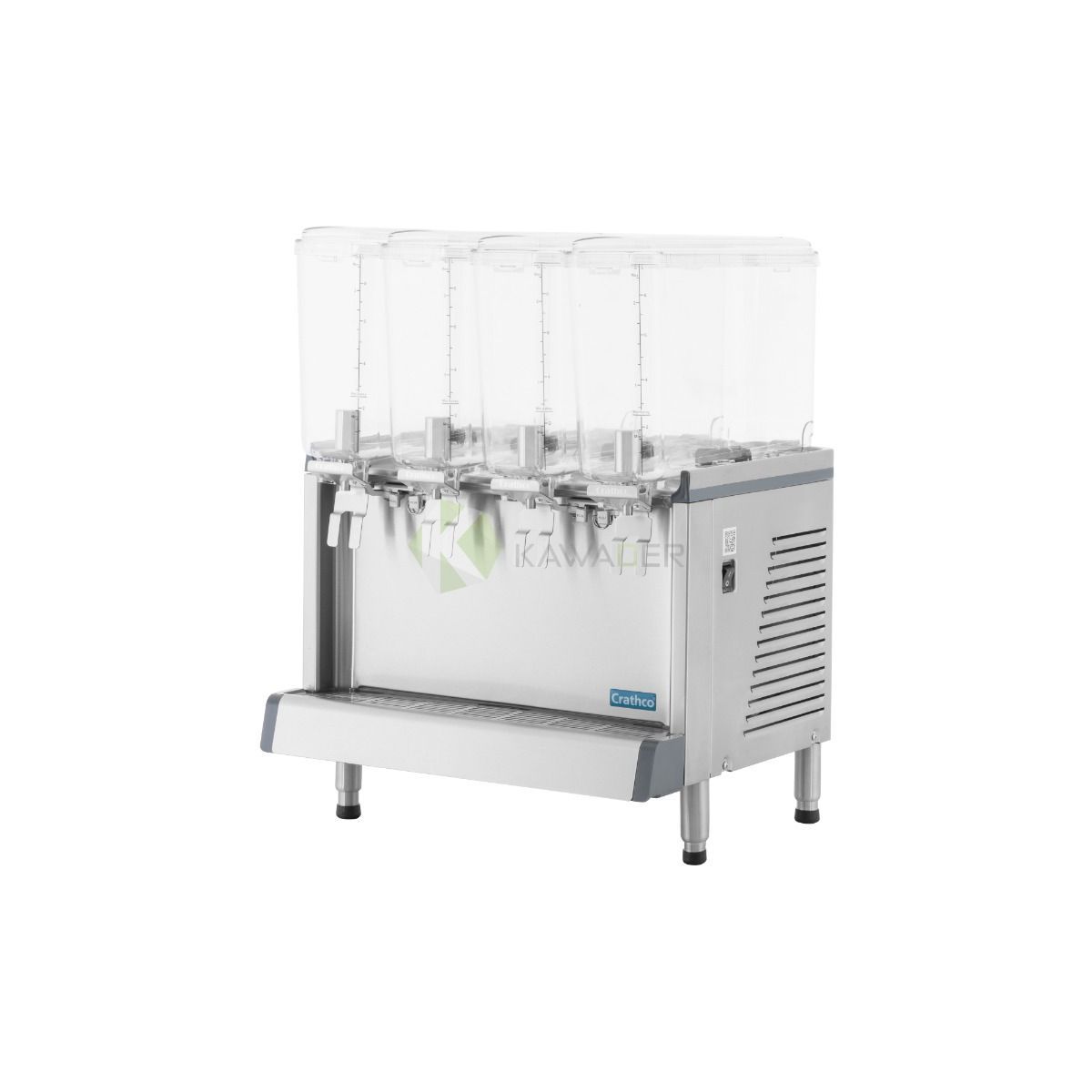

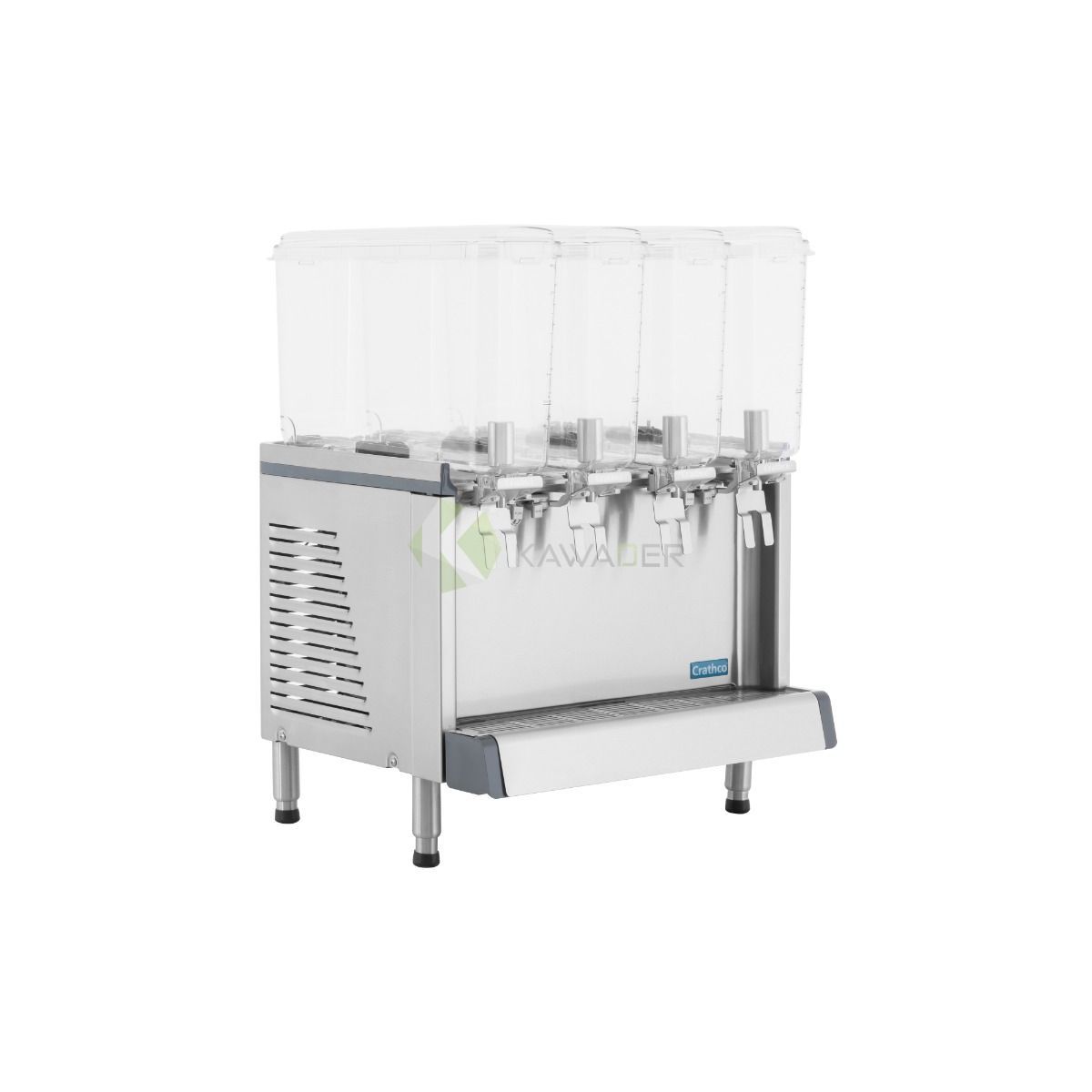

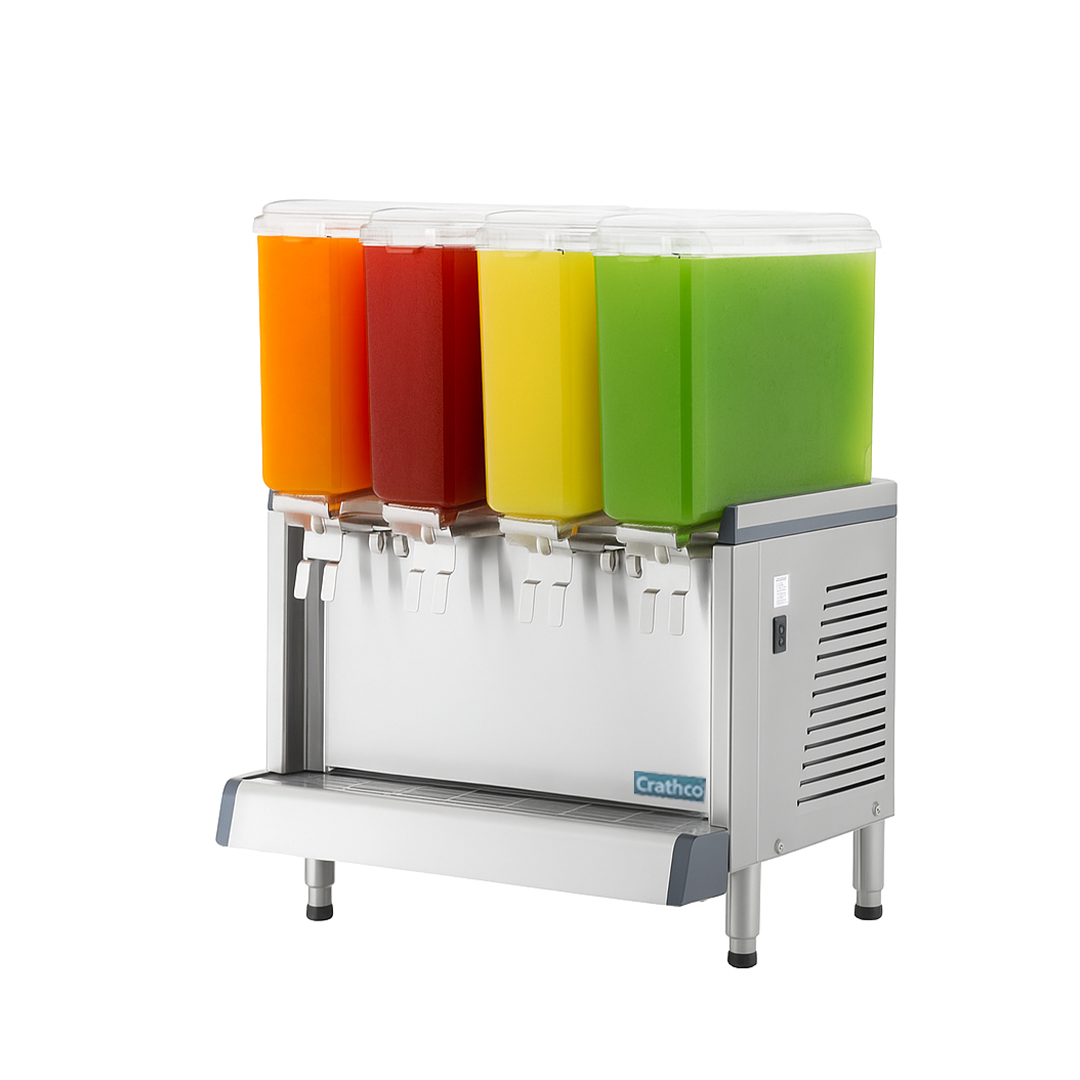

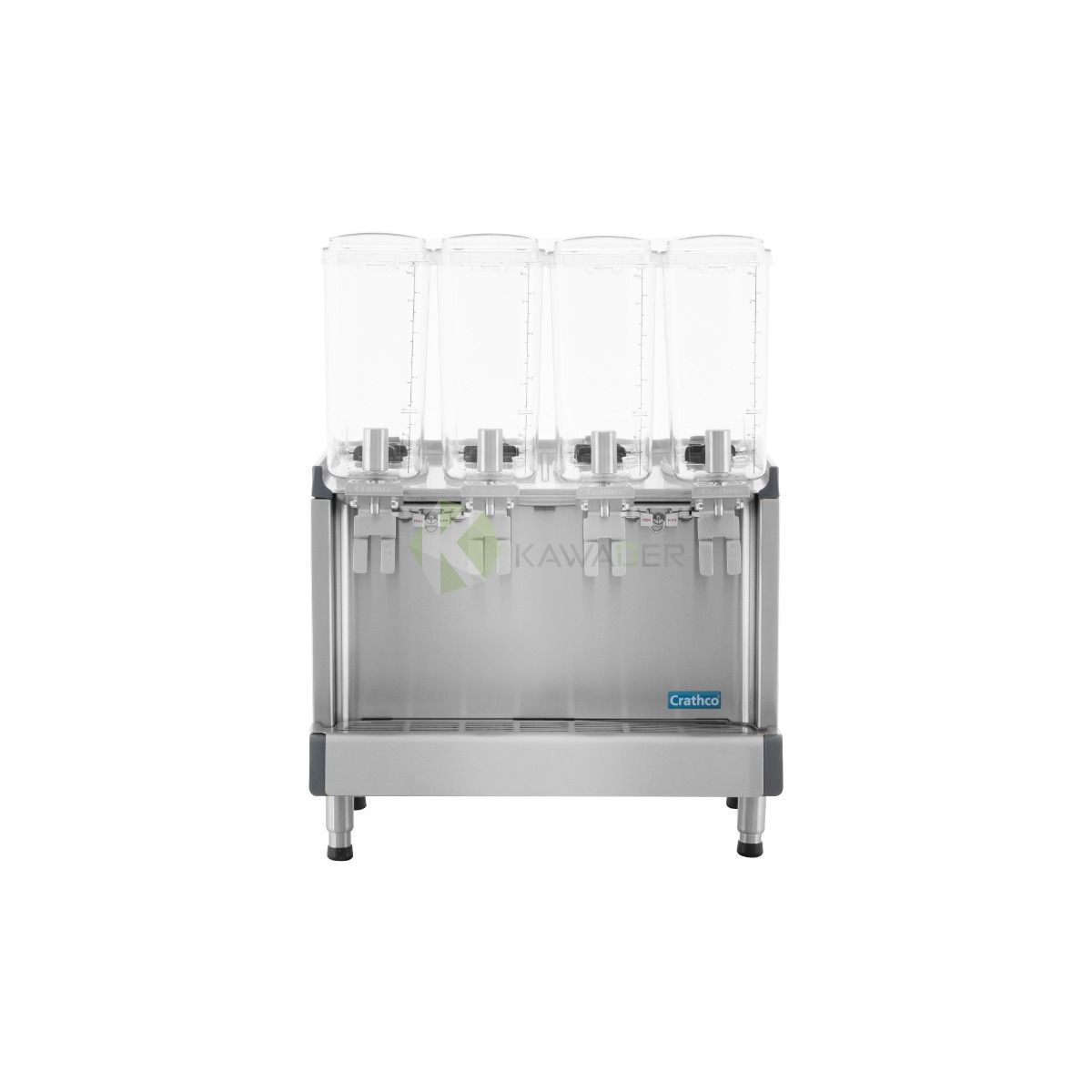

4 Bowl Cold Beverage Dispenser 4 × 9L from Crathco

Juice Dispenser 4 × 9L from Crathco

The Crathco 4 Bowl Cold juice dispenser is designed for restaurants, cafes, hotels, buffet stations, and other commercial beverage operations that need to keep several chilled drinks ready for service. With four transparent bowls, each offering a 9-liter capacity, the unit provides a total beverage capacity of 36 liters while allowing four different drinks to be presented at the same time.

This commercial beverage dispenser combines refrigerated beverage holding, gentle agitation, clear product visibility, and convenient dispensing in one countertop unit. It can be used for suitable cold beverages such as juices, iced tea, cold brew coffee, fruit drinks, and other chilled products according to operational requirements.

For businesses looking for a Crathco beverage dispenser with multiple bowls, model CS-4E-22 provides a practical configuration for locations where beverage variety and continuous cold service are important.

Crathco Beverage Dispenser with Four 9-Liter Bowls

The Crathco beverage dispenser includes four transparent bowls with a capacity of 9 liters each. This provides 36 liters of total capacity while dividing the available volume between four separate beverage containers.

This configuration can be useful when a business wants to offer several flavors rather than dedicating the entire dispenser to one beverage. A restaurant could use the bowls for different juices, while a hotel breakfast area may use them for a selection of chilled drinks.

Because each bowl has a moderate 9-liter capacity, businesses can also distribute production between several beverages according to demand rather than placing a large quantity of one product into a single container.

Crathco Juice Dispenser for Commercial Beverage Service

A Crathco juice dispenser can help businesses organize service when chilled beverages need to remain ready for customers throughout a service period. Instead of preparing every drink individually, suitable beverages can be prepared in advance and dispensed as required.

This can be particularly useful for breakfast operations, cafeterias, buffets, self-service areas, and restaurants with predictable demand for several cold drinks.

The four-bowl design also creates a visible beverage presentation, allowing customers or staff to identify the available drinks quickly.

36-Liter Total Beverage Capacity

The machine provides a combined capacity of 36 liters across its four 9-liter bowls. This allows businesses to divide the total capacity according to four beverage options.

For example, a breakfast buffet could allocate individual bowls to different juice flavors, while a cafe or restaurant could combine fruit beverages, iced tea, and other suitable chilled drinks.

The practical value of this capacity depends on actual consumption. Businesses should calculate expected beverage demand during peak service to determine whether a four-bowl juice dispenser is appropriate for their operation.

Four-Bowl Juice Dispenser for Multiple Flavors

One of the main advantages of a four-bowl configuration is beverage variety. Each transparent container provides a separate presentation area, making it possible to display several drinks from one machine footprint.

This can be particularly useful where customers expect multiple beverage choices but countertop space is limited.

The bowls can also help staff monitor beverage levels visually, making it easier to identify which drink requires replenishment during busy periods.

Cold Beverage Dispenser with Refrigerated Holding

This Crathco unit is a refrigerated beverage dispenser designed to maintain cold drinks within an operating temperature range of approximately 1°C to 5°C.

Refrigerated holding is particularly important for operations where beverages remain in the dispenser throughout a service period rather than being poured immediately after preparation.

The appropriate operating procedures for each beverage should still be followed, including preparation, storage, holding time, cleaning, and any applicable food-safety requirements.

Gentle Beverage Agitation System

The Crathco dispenser uses a gentle agitation system designed to keep suitable beverages moving inside the bowls while reducing excessive foaming.

Agitation can be useful for beverages where ingredients might otherwise separate while waiting for service. The appropriate application depends on the drink being dispensed and its preparation requirements.

For juice, iced tea, cold brew coffee, and other suitable beverages, the system helps maintain movement within the transparent containers while they remain refrigerated.

Transparent Beverage Bowls

Clear bowls allow the beverage itself to become part of the display. Customers can see available flavors and colors, while staff can monitor remaining quantities without opening the machine.

This visibility makes the juice dispenser particularly suitable for front-of-house beverage stations, hotel breakfast areas, buffets, cafeterias, and self-service concepts.

The transparent bowls are BPA-free and designed for commercial beverage presentation.

Stainless Steel Base

The Crathco CS-4E-22 features a stainless steel base, providing a professional appearance suitable for commercial foodservice environments.

Stainless steel also coordinates naturally with other professional beverage and kitchen equipment, including counters, preparation tables, refrigeration, and coffee equipment.

The exterior should be cleaned according to manufacturer instructions as part of the beverage station's regular cleaning schedule.

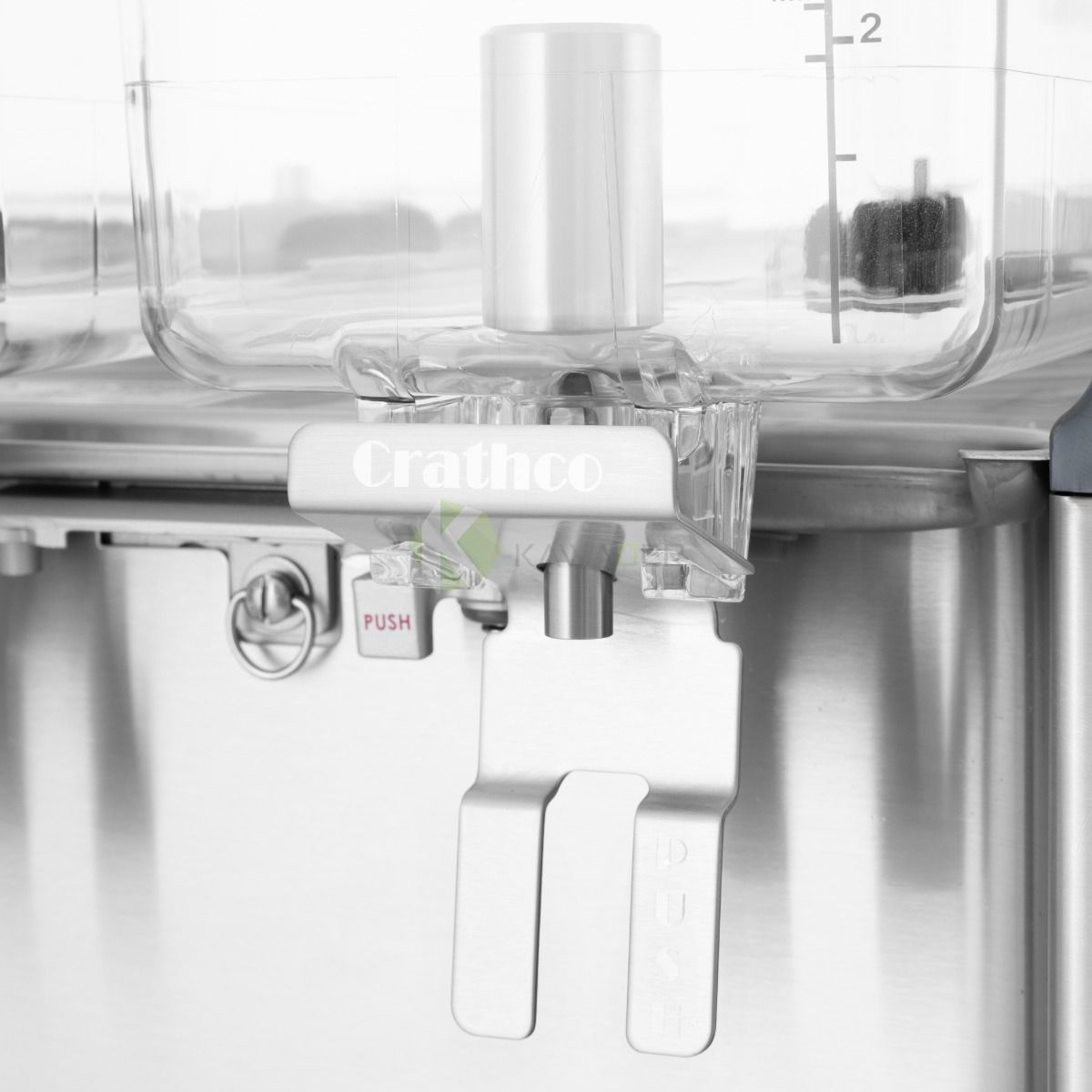

Heavy-Duty Dispensing Valves

A commercial dispenser needs to support repeated service throughout the day. The Crathco unit uses dispensing valves designed for professional beverage applications.

The dispensing system is designed to allow the contents of the bowls to be served efficiently while reducing the amount of beverage left behind.

Regular cleaning of dispensing components remains important because valves come into repeated contact with beverages during service.

Crathco Juice Dispenser for Restaurants

Restaurants can use a Crathco juice dispenser where prepared cold drinks form a regular part of the menu. Four bowls allow several options to be available simultaneously without requiring four separate machines.

The machine can be positioned in a staff-operated beverage station or another suitable service area depending on the restaurant layout.

Restaurants should consider the relationship between the dispenser and nearby refrigeration, ice equipment, cups, glassware, and preparation space when designing the station.

Juice Dispenser for Hotel Breakfast Buffets

Hotel breakfast service often creates concentrated beverage demand over a few hours. A multi-bowl juice dispenser can allow several chilled beverage options to remain visible and ready for service.

Four separate bowls can support different juice varieties or other suitable cold drinks, helping hotels provide guests with a broader beverage selection from one dispensing unit.

Hotels should calculate consumption according to breakfast occupancy and guest numbers so that beverages can be replenished according to actual demand.

Beverage Dispenser for Cafes

Cafes with a broad beverage menu can use a refrigerated beverage dispenser for suitable prepared drinks that are sold repeatedly throughout the day.

The machine can complement espresso machines, grinders, blenders, juicers, and ice equipment by providing a separate station for ready-to-serve chilled beverages.

Because the Crathco unit offers four bowls, a cafe can provide several prepared drink options while keeping made-to-order beverages on other equipment.

Cold Beverage Dispenser for Cafeterias

Cafeterias and institutional foodservice operations can experience high demand during fixed meal periods. A 36-liter multi-bowl dispenser can help organize cold beverage service by keeping several options available in one location.

The clear bowls also make drink selection straightforward in service lines where customers need to move through the beverage station efficiently.

Capacity should be evaluated according to the number of customers served during the busiest meal period.

Juice Dispenser for Catering and Events

Catering businesses can use commercial beverage dispensers for suitable event setups where prepared cold drinks need to remain ready for service.

When considering the Crathco CS-4E-22 for event use, businesses should account for its dimensions, electrical requirements, weight, transportation, and the availability of a suitable countertop installation area.

Because the unit uses active refrigeration, access to the correct electrical supply is required during operation.

Suitable Drinks for the Crathco Beverage Dispenser

The Crathco dispenser can support a range of suitable cold beverages. The product is particularly relevant to operations serving juices and other chilled prepared drinks.

Potential applications include fresh or prepared juice according to operational procedures, iced tea, cold brew coffee, fruit beverages, and other compatible chilled drinks.

Businesses should ensure that the beverage is suitable for the machine's agitation and dispensing system before use.

Crathco Beverage Dispenser for Iced Tea

In addition to juice, the machine can be used for suitable iced tea applications. A restaurant could dedicate one bowl to iced tea while using the remaining containers for juice or other cold beverages.

This flexibility can be useful for locations where beverage demand varies throughout the day.

The four-bowl configuration allows operators to build a beverage selection around actual customer preferences rather than offering only one drink.

Crathco Beverage Dispenser for Cold Brew Coffee

Cold brew coffee is another potential application identified for this Crathco dispenser. Cafes, hotel breakfast operations, and restaurants can use one of the bowls for suitable cold coffee service while retaining the other bowls for different beverages.

This can be particularly useful in operations where cold brew is prepared in batches and served repeatedly during a defined service period.

The beverage preparation and holding procedure should remain consistent with the business's recipe and food-safety requirements.

Countertop Beverage Dispenser

The Crathco CS-4E-22 is designed as a countertop unit. It measures approximately 520 mm wide, 470 mm deep, and 700 mm high.

Before installation, businesses should measure the available counter and consider the full height of the machine as well as access for filling, removing, and cleaning the bowls.

Additional clearance should be provided according to the manufacturer's installation and ventilation requirements.

Bottom-to-Back Ventilation

The refrigeration system uses a bottom-to-back ventilation arrangement. Proper ventilation is important for refrigerated commercial equipment, so the dispenser should be installed according to the manufacturer's clearance requirements.

Businesses should avoid positioning the unit in a way that blocks the required airflow.

The final installation position should also allow staff to access the machine conveniently for daily operation and cleaning.

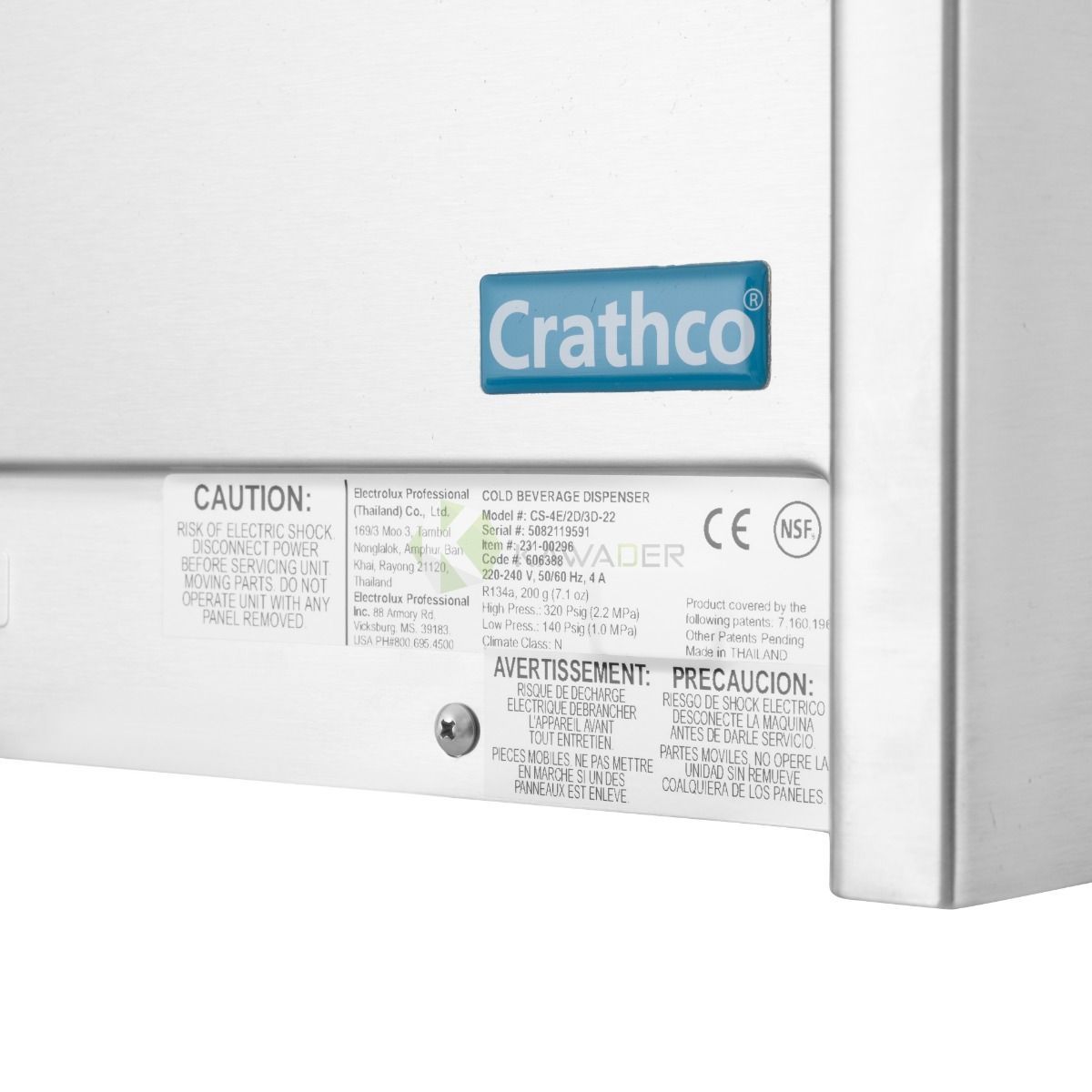

Electrical Requirements

The Crathco CS-4E-22 operates on 220V, single-phase, 60Hz electrical power. The listed power is 1000W with a current rating of 4A.

Businesses should verify that the available electrical supply matches the machine specifications before installation.

The electrical connection should be installed and used according to the manufacturer's requirements and applicable electrical standards.

Crathco CS-4E-22 Technical Specifications

The technical configuration of this Crathco beverage dispenser makes it suitable for professional countertop beverage stations where multiple cold drinks are required.

• Model: CS-4E-22
• Type: Cold beverage dispenser
• Number of bowls: 4
• Capacity per bowl: 9 liters
• Total capacity: 36 liters
• Operating temperature: 1°C to 5°C
• Position: Countertop
• Voltage: 220V
• Phase: Single phase
• Frequency: 60Hz
• Power: 1000W
• Current: 4A
• Refrigerant: R134a
• Width: 520 mm
• Depth: 470 mm
• Height: 700 mm
• Approximate weight: 41.76 kg

Easy Bowl Removal and Cleaning

Cleaning is an important consideration for any commercial juice dispenser. The Crathco unit uses an easy-off bowl system designed to simplify removal for routine cleaning.

The machine also has fewer removable components, helping streamline daily disassembly and reassembly.

Staff should follow the manufacturer's instructions for cleaning the bowls, valves, lids, and other beverage-contact components and incorporate the machine into the beverage station's regular hygiene schedule.

Lockable Lids for Commercial Service

The dispenser includes lockable lids, providing a practical feature for professional service environments.

This can be particularly relevant in buffet and self-service locations where the machine is positioned in an area accessible to customers.

Operators should follow the recommended filling and operating procedures whenever opening or closing the bowls.

Choosing Between Crathco Beverage Dispenser Capacities

Crathco cold beverage dispensers are available in different bowl and capacity configurations. Businesses should select the configuration according to the number of beverage flavors and total volume required.

A four-bowl 4 × 9L model is particularly useful when variety is important. An operation that sells a much larger quantity of fewer beverages may prefer a configuration using larger individual bowls.

The decision should therefore consider both total liters and how those liters are divided between different drinks.

Four 9L Bowls vs Larger Beverage Bowls

Four 9-liter bowls provide a different service strategy from one or two larger containers. The four-bowl format prioritizes variety by dividing the total 36-liter capacity between four beverages.

This can suit hotels and restaurants where customers expect several juice or drink options.

If a business sells one beverage in substantially higher volume than the others, a different bowl configuration may better match its consumption pattern.

Crathco Juice Dispenser vs Ugolini Juice Dispenser

Businesses comparing a Crathco juice dispenser with an Ugolini juice dispenser should compare specific models rather than brands alone. Important factors include the number of bowls, capacity per bowl, total capacity, refrigeration system, agitation method, machine dimensions, electrical specifications, and cleaning requirements.

The Crathco CS-4E-22 provides four 9-liter bowls for a total of 36 liters. An Ugolini juice dispenser should be compared according to the specifications of the individual model being considered.

The best configuration depends on beverage variety, expected volume, available countertop space, and the workflow of the business.

Cold Juice Dispenser vs Thermal Beverage Dispenser

A refrigerated juice dispenser and a thermal beverage dispenser serve different beverage-service requirements. The Crathco CS-4E-22 actively refrigerates suitable cold drinks and is designed for chilled beverage presentation and dispensing.

A thermal beverage dispenser is typically selected for a different holding or service application depending on its design. Businesses should therefore choose equipment according to the required beverage temperature and service method.

A thermal dispenser should not be treated as an alternative with identical functionality to an actively refrigerated cold beverage machine.

Cold Beverage Dispenser vs Stainless Steel Hot Beverage Dispenser

A stainless steel hot beverage dispenser is designed around hot beverage service, while the Crathco product is specifically a refrigerated cold beverage dispenser.

Restaurants, hotels, and buffets may require both types of equipment. The Crathco machine can serve suitable chilled beverages, while separate hot beverage equipment can support coffee, tea, hot water, or other products according to the specific dispenser.

Keeping cold and hot beverage equipment clearly separated also helps businesses organize the service station around the temperature requirements of each drink.

Integrating the Dispenser with a Hotel Beverage Station

A hotel breakfast beverage station can combine the Crathco cold dispenser with coffee brewers, hot water equipment, cups, glassware, ice, and other service accessories.

The four transparent bowls can create a dedicated cold-drink section while coffee and hot beverage equipment occupies a separate area.

The station should provide sufficient circulation space so that guests or staff can access cold and hot drinks without unnecessary congestion.

Integrating the Dispenser with a Restaurant Beverage Station

Restaurants can position the dispenser close to cups, ice, and the point where beverages are collected for service. If the machine is staff-operated, it should be easily accessible from the beverage preparation area.

For self-service applications, the location should allow customers to identify and dispense beverages without blocking other parts of the service line.

The 520 mm width should be considered when allocating countertop space alongside other equipment.

Planning Beverage Volume with Four Bowls

Businesses should determine which four beverages generate enough demand to justify dedicated bowl space. Not every flavor needs to be filled to maximum capacity at all times.

Monitoring actual sales can help operators decide which beverages require more frequent replenishment and which should be prepared in smaller quantities.

This approach can help businesses use the four-bowl beverage dispenser according to real demand rather than preparing the same quantity of every flavor.

Why Choose a Multi-Bowl Juice Dispenser?

A multi-bowl machine can provide several advantages for businesses with varied cold beverage menus. It combines refrigeration, presentation, and dispensing while allowing multiple drinks to share one commercial unit.

The Crathco CS-4E-22 is particularly focused on variety, with four independent 9-liter bowls instead of one large beverage container.

This configuration can be useful for breakfast buffets, cafeterias, hotels, restaurants, and other operations where customers expect a choice of chilled beverages.

Cleaning and Daily Maintenance

Daily maintenance should include cleaning beverage-contact components according to Crathco's instructions and checking that bowls, lids, valves, and other removable components are correctly reassembled before operation.

The stainless steel exterior and surrounding counter should also be kept clean as part of the beverage station's hygiene program.

Staff should monitor cooling performance and report unusual operation or changes in temperature so technical issues can be investigated appropriately.

Buy Crathco Juice Dispenser in Saudi Arabia

The Crathco CS-4E-22 is a commercial juice dispenser designed for businesses that need multiple chilled beverages ready for service. Its four 9-liter transparent bowls provide a combined 36-liter capacity and allow several drinks to be presented simultaneously.

Restaurants, cafes, hotels, buffets, cafeterias, and other foodservice operations can use this Crathco beverage dispenser for suitable juices, iced tea, cold brew coffee, fruit drinks, and chilled beverages.

When comparing a Crathco juice dispenser with an Ugolini juice dispenser or another commercial model, consider bowl configuration, total capacity, cooling, dimensions, cleaning, and electrical requirements. Businesses requiring a thermal beverage dispenser or stainless steel hot beverage dispenser should select separate equipment designed specifically for their hot or thermal beverage application.

Understanding the Crathco 4 Bowl Beverage Dispenser

What is the capacity of this Crathco juice dispenser?

The Crathco juice dispenser has four bowls with a capacity of 9 liters each, providing a total beverage capacity of 36 liters.

What drinks can be served from this beverage dispenser?

The dispenser is suitable for compatible cold beverages such as juices, iced tea, cold brew coffee, fruit beverages, and other chilled drinks. The suitability of a specific beverage should be checked against the machine's operating requirements.

What temperature does the Crathco beverage dispenser operate at?

The listed operating temperature range for the Crathco CS-4E-22 is approximately 1°C to 5°C, providing refrigerated holding for suitable cold beverages.

What is the difference between this juice dispenser and a thermal beverage dispenser?

This juice dispenser uses active refrigeration to maintain suitable cold beverages at a chilled temperature. A thermal beverage dispenser is a different type of service solution whose function depends on its individual design and intended temperature application.

Is this the same as a stainless steel hot beverage dispenser?

No. The Crathco CS-4E-22 is a refrigerated cold beverage machine with transparent bowls and a stainless steel base. A stainless steel hot beverage dispenser is intended for a different hot beverage application and should be selected separately according to the drinks being served.
