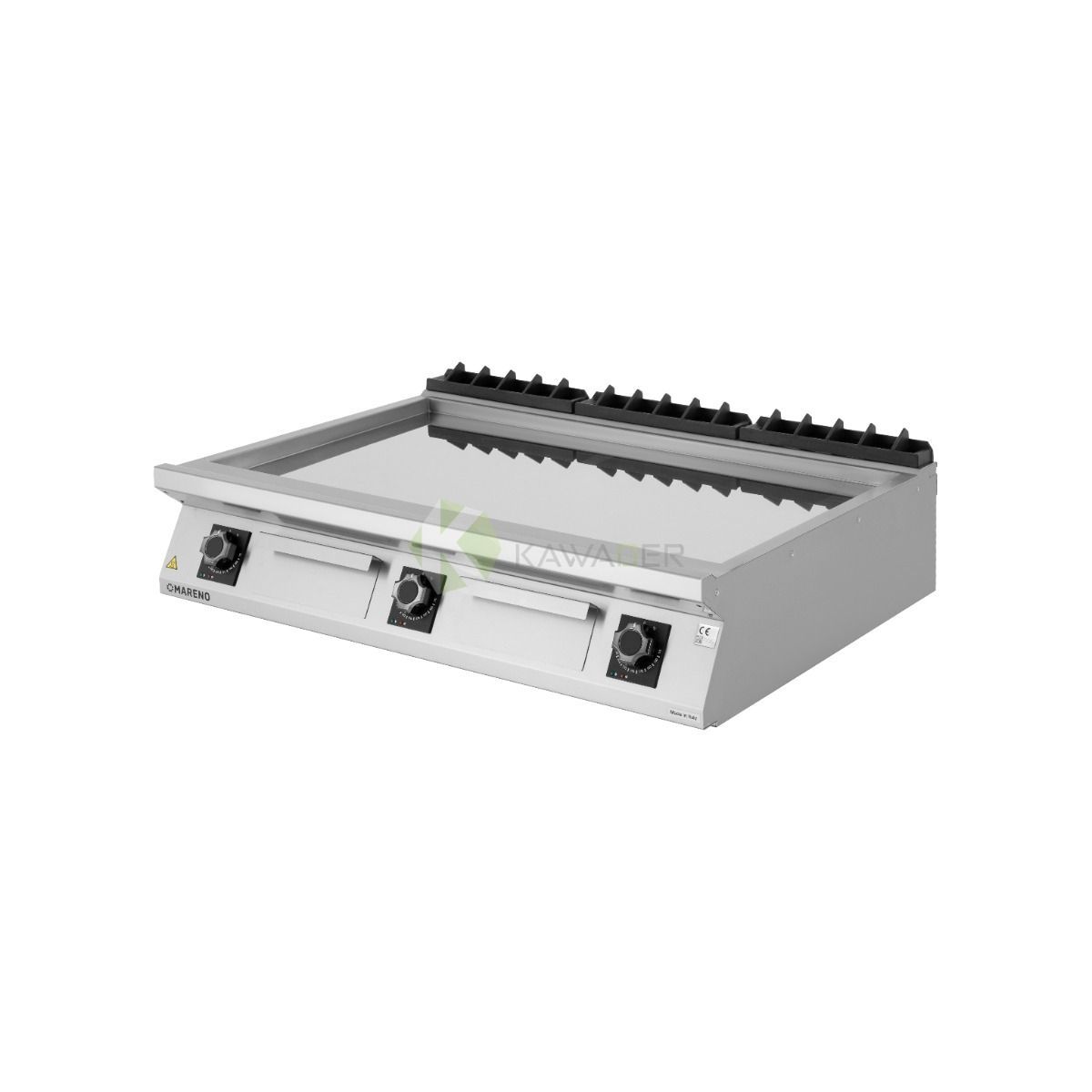

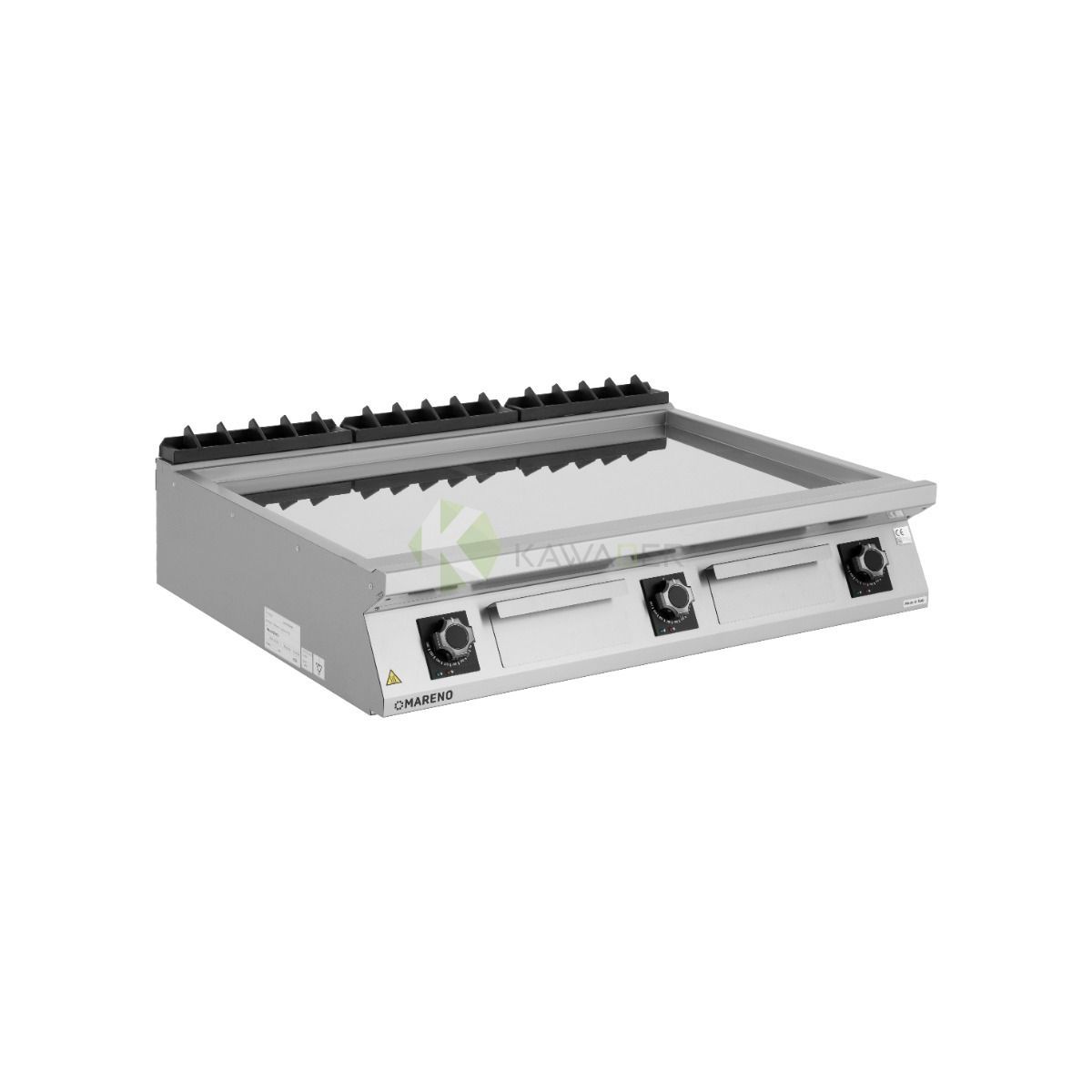

120cm Electric Smooth Chrome Griddle – 22.5kW from Mareno

120cm Electric Smooth Chrome Griddle

The 120cm electric smooth chrome griddle provides a large commercial cooking surface for restaurants, hotels, central kitchens, catering operations and fast-food businesses.

The appliance is manufactured from AISI 304 stainless steel and features a smooth, mirror-polished chrome hotplate. Its cooking surface measures 1135×700mm, while its rated electrical power is 22500W.

The cooking temperature is thermostatically controlled from 110°C to 280°C, and the unit includes a grease drain hole and a 1.5-litre collection tub.

Mirror-Polished Chrome Cooking Surface

The large restaurant electric griddle features a smooth chrome-plated cooking surface with a mirror-polished finish.

It can be used to prepare:

• Burgers and meat portions.
• Chicken fillets.
• Eggs and breakfast products.
• Sautéed vegetables.
• Hot sandwiches.
• Selected seafood products.
• Different fast-food menu items.

The smooth plate allows products to remain in direct contact with the heated surface and can be used with suitable griddle tools for turning and moving food.

1135×700mm Cooking Plate

The 1135x700mm chrome cooking plate provides an extended working area for preparing several portions simultaneously.

Operators can organise products across different areas of the cooking surface according to food type and preparation stage, while following suitable food-safety and cross-contamination procedures.

The supplied specifications do not confirm a technical configuration of three independently controlled heating zones.

Benefits of the Large Cooking Area

The cooking plate supports:

• Preparation of multiple portions at one time.
• Separation of different products.
• High-volume restaurant service.
• Better organisation of the cooking workflow.
• Reduced reliance on several smaller griddles.
• Commercial batch preparation.

Hotplate Recessed by 40mm

The cooking plate is recessed 40mm below the surrounding worktop.

This creates a raised perimeter around the cooking area, helping contain grease and liquid generated during cooking.

The recessed design also supports the movement of cooking residue toward the drain opening.

Thermostatic Control from 110°C to 280°C

The Mareno 120cm chrome griddle provides thermostatic temperature control with adjustment from 110°C to 280°C.

A heat-control knob allows the operator to select an appropriate temperature according to the product, thickness and desired cooking result.

Temperature Control Benefits

• Adjustable heat for different food products.
• Better control during cooking stages.
• Lower settings for heating or continued cooking.
• Higher settings for searing and browning.
• Operation within the specified temperature range.

40mm Grease Drain Hole

The cooking surface includes a round grease drain hole with a diameter of 40mm.

The opening directs grease and cooking liquids from the chrome surface into the collection tub, reducing residue accumulation on the main cooking area.

The drain path should be cleaned regularly to prevent blockage by food particles or grease.

1.5-Litre Grease Collection Tub

The 22.5kW commercial flat top includes a grease collection tub with a capacity of 1.5 litres.

The tub receives waste through the drain hole and provides a dedicated point for collecting grease and cooking liquids.

It should be inspected and emptied regularly according to the operating volume after the appliance and collected contents have cooled safely.

Grease Collection Benefits

• Directs grease away from the cooking plate.
• Reduces liquid accumulation.
• Provides a dedicated waste collection point.
• Supports routine cleaning procedures.
• Helps maintain an organised cooking station.

120cm Countertop Design

The appliance is designed for placement on a suitable commercial counter, cabinet or supporting base.

Its overall dimensions are:

• Width: 120cm.
• Depth: 92cm.
• Height: 25cm.

The support surface must be stable, level and capable of carrying the appliance weight and operating load.

AISI 304 Stainless Steel Body

The appliance body is manufactured from AISI 304 stainless steel for use in professional food-service environments.

Its smooth exterior supports routine wiping and cleaning, while the stainless steel finish coordinates with other commercial kitchen appliances.

22.5kW Electrical Power

The griddle has a rated electrical power of 22500W and operates on a 380V, 3N, 60Hz supply.

A compatible dedicated electrical circuit, suitable protective devices and an effective grounding system are required.

Installation should be completed by a qualified electrical technician according to the equipment specifications and applicable requirements.

Main Product Features

• Smooth electric cooking surface.
• Mirror-polished chrome hotplate.
• AISI 304 stainless steel body.
• Cooking area measuring 1135×700mm.
• Hotplate recessed by 40mm.
• Thermostatic temperature control.
• Temperature range from 110°C to 280°C.
• Heat-control knob.
• Round 40mm grease drain hole.
• 1.5-litre grease collection tub.
• Rated power of 22500W.
• Commercial countertop design.
• Suitable for restaurant kitchens.

Suitable Commercial Applications

Burger and Fast-Food Restaurants

The griddle can prepare multiple burgers, chicken portions, vegetables and hot sandwiches on one large surface.

Breakfast Restaurants

Its smooth chrome plate suits eggs and breakfast products requiring direct contact with a flat cooking surface.

Hotels and Central Kitchens

The extended surface supports the preparation of several portions during high-volume service periods.

Catering Operations

The appliance can be integrated into commercial hot-food production lines requiring a large electric flat top.

Large Restaurants

It is suitable for operations that require a wide countertop griddle for preparing multiple commercial portions.

Technical Specifications

• Product type: Countertop electric smooth griddle.
• Model: FT912ELCT.
• Cooking surface: Smooth and chrome plated.
• Surface finish: Mirror polished.
• Body material: AISI 304 stainless steel.
• Cooking surface dimensions: 1135×700mm.
• Hotplate recess: 40mm below the worktop.
• Temperature range: 110°C to 280°C.
• Temperature control: Thermostatic.
• Control: Heat-control knob.
• Grease drain hole diameter: 40mm.
• Grease collection tub capacity: 1.5 litres.
• Power: 22500W.
• Voltage: 380V.
• Electrical connection: 3N.
• Frequency: 60Hz.
• Width: 120cm.
• Depth: 92cm.
• Height: 25cm.
• Weight: 143kg.

Why Choose This Chrome Griddle?

This griddle is suitable for commercial kitchens requiring a large, smooth chrome cooking surface in a countertop format. Its wide plate, thermostatic control, recessed design and grease drainage system support organised high-volume cooking.
