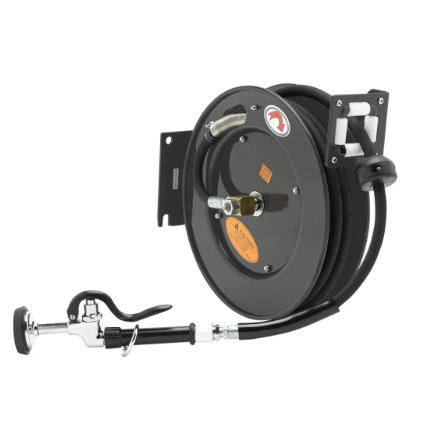

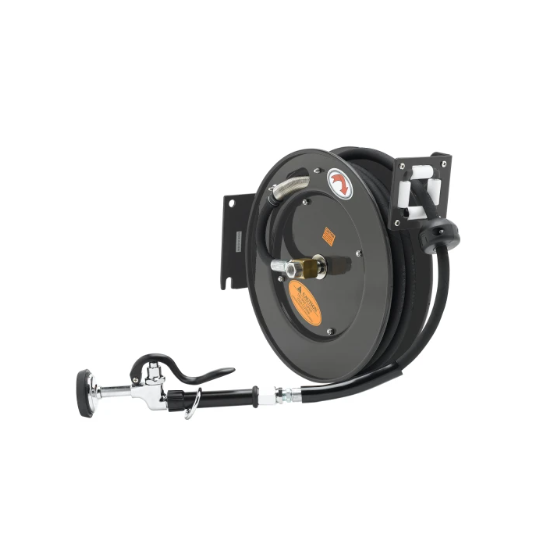

Open Hose Reel 35ft with High-Flow Spray Valve From PIOKIT

Open Hose Reel 35ft with High-Flow Spray Valve – 5HR-232-01

The 5HR-232-01 Hose Reel features an open coated-steel construction and comes equipped with a 3/8-inch × 35ft (10.7m) hose and a high-flow spray valve delivering up to 2.27 GPM (8.59 L/min).

The hose reel includes a ratcheting system, multi-fit mounting bracket, adjustable hose bumper, and a 3/8-inch NPT female inlet. It is specified for pressures from 1.38 to 8.62 bar and temperatures from 40°F (4.44°C) to 140°F (60°C).

Key Features

• Open hose reel design
• Coated steel construction
• 3/8-inch × 35ft (10.7m) hose
• High-flow spray valve
• 2.27 GPM (8.59 L/min) spray valve flow
• Ratcheting system
• Multi-fit mounting bracket
• Adjustable hose bumper
• 3/8-inch NPT female inlet
• 40°F to 140°F (4.44°C to 60°C) temperature range

35ft / 10.7m Hose

The 35ft Hose Reel provides a 3/8-inch hose measuring 35ft (10.7m) long. The ratcheting mechanism supports hose positioning during use, while the adjustable hose bumper allows the stopping position to be adjusted.

High-Flow Spray Valve

The supplied spray valve provides a specified flow rate of 2.27 GPM (8.59 L/min), with an operating pressure range from 1.38 to 8.62 bar.

Technical Specifications

Model: 5HR-232-01

Type: Open Hose Reel with Spray Valve

Finish: Coated Steel

Hose Size: 3/8 inch

Hose Length: 35ft / 10.7m

Maximum Pressure: 8.62 bar

Minimum Pressure: 1.38 bar

Maximum Temperature: 140°F / 60°C

Minimum Temperature: 40°F / 4.44°C

Spray Valve Flow: 2.27 GPM / 8.59 L/min

Inlet: 3/8-inch NPT Female

Reel System: Ratcheting System

Bracket: Multi-Fit Bracket
