80cm Electric Smooth Chrome Griddle – 15kW from Mareno

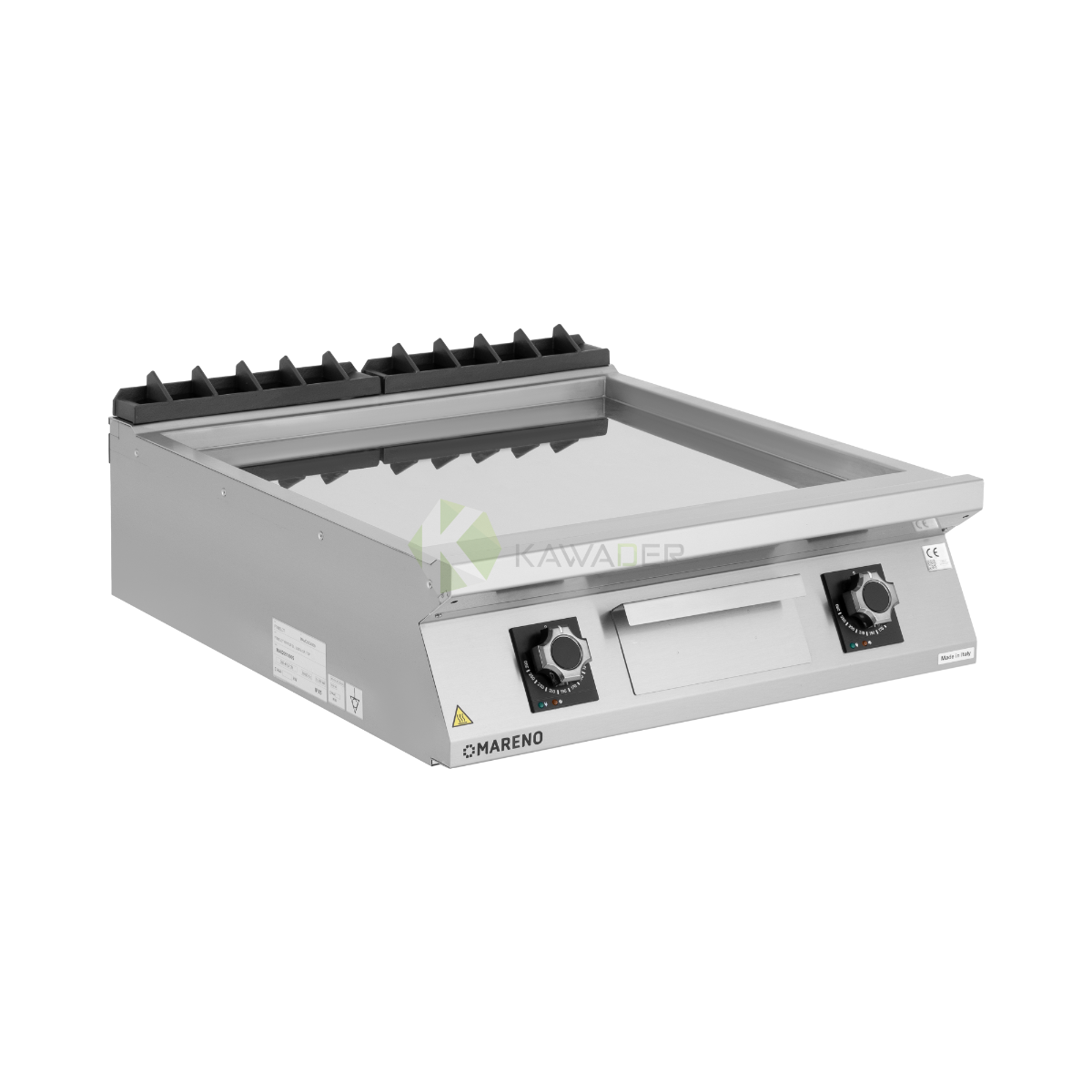

80cm Electric Smooth Chrome Griddle

The 80cm electric smooth chrome griddle provides a commercial flat cooking surface for restaurants, hotels, cafés, central kitchens and fast-food operations.

The appliance features a 304 stainless steel body and a smooth chrome-plated cooking plate measuring 735×700mm. Its cooking temperature is thermostatically controlled and adjustable from 110°C to 280°C.

The griddle operates at 15000W on a 380V, 3N, 60Hz electrical supply. It also includes a 65mm front cold zone, a 40mm grease drain hole and a 1.5-litre collection tub.

Smooth Chrome-Plated Cooking Plate

The commercial smooth chrome griddle provides a flat direct-contact surface suitable for preparing different food products.

It can be used for:

• Burgers and meat portions.
• Chicken fillets.
• Eggs and breakfast products.
• Sautéed vegetables.
• Hot sandwiches.
• Selected fish and seafood.
• Different fast-food menu items.

The smooth cooking surface allows food to be moved and turned using suitable commercial griddle tools.

735×700mm Cooking Surface

The 735x700mm chrome cooking plate provides a large area for preparing several portions simultaneously.

The cooking surface can be divided into separate working zones according to the food type and preparation stage, subject to appropriate food-safety procedures.

Cooking Area Benefits

The surface supports:

• Preparation of multiple portions.
• Separation of different menu products.
• High-volume commercial service.
• Organisation of cooking zones.
• Reduced reliance on smaller appliances.
• Efficient movement between cooking and serving.

Thermostatic Temperature Control

The Mareno chrome electric griddle offers thermostatic temperature adjustment from 110°C to 280°C.

This range allows the operator to select an appropriate setting according to the product, thickness and required cooking result. It supports warming, cooking, searing and browning applications.

Temperature Control Benefits

• Adjustable heat for different foods.
• Better control during each cooking stage.
• Selection of the required heating intensity.
• Support for varied commercial menus.
• Operation within the specified range.

65mm Front Cold Zone

The cooking plate features a 65mm cold zone at the front of the hotplate.

This lower-temperature section can be used to move food temporarily away from the main heated area. It also creates a separation between the active cooking zone and the front edge of the appliance.

40mm Grease Drain Hole

The plate includes a round grease drain hole measuring 40mm in diameter.

The opening directs grease and cooking liquids from the hotplate into the collection tub. Regular cleaning helps prevent cooking residue from restricting the drainage path.

1.5-Litre Grease Collection Tub

The 15kW countertop flat top grill includes a grease collection tub with a capacity of 1.5 litres.

The tub receives grease and liquid through the drain hole, providing a dedicated point for collecting cooking residue.

It should be inspected and emptied regularly according to the operating volume and after the appliance has cooled safely.

Grease Collection Benefits

• Directs grease away from the hotplate.
• Reduces liquid accumulation.
• Provides a dedicated waste collection point.
• Supports routine cleaning procedures.
• Helps maintain an organised cooking area.

Designed for Water Column Accessory

The top is designed to accommodate a compatible water column accessory.

This allows the accessory to be added according to the kitchen layout and operating requirements. The water column may support selected cleaning and working procedures when properly installed.

The accessory is not stated as included and should be confirmed or purchased separately if required.

Countertop Restaurant Griddle

The restaurant electric griddle top has a countertop design with a height of 25cm.

Its overall dimensions are:

• Width: 80cm.
• Depth: 92cm.
• Height: 25cm.

The griddle should be installed on a stable and level commercial base or worktop capable of supporting its weight and operating requirements.

304 Stainless Steel Body

The appliance body is manufactured from 304 stainless steel for use in professional kitchen environments.

Its smooth outer surfaces support routine wiping and cleaning, while the stainless steel appearance coordinates with other commercial preparation and cooking appliances.

15kW Electrical Rating

The appliance has a rated power of 15000W and operates on a 380V, 3N, 60Hz supply.

A dedicated electrical circuit, suitable protective devices and an appropriate grounding system are required. Installation should be completed by a qualified electrical technician.

Main Product Features

• Smooth electric cooking plate.
• Chrome-plated cooking surface.
• 304 stainless steel body.
• Cooking area measuring 735×700mm.
• Thermostatic temperature control.
• Temperature range from 110°C to 280°C.
• 65mm front cold zone.
• Round 40mm grease drain hole.
• 1.5-litre grease collection tub.
• Designed for a water column accessory.
• Rated electrical power of 15000W.
• Commercial countertop design.
• Suitable for restaurant kitchens.

Suitable Commercial Applications

Burger and Fast-Food Restaurants

The griddle can prepare burgers, chicken, vegetables and hot sandwiches on one cooking surface.

Breakfast Restaurants

Its smooth chrome plate is suitable for eggs and breakfast products requiring direct contact with a flat cooking surface.

Hotels and Central Kitchens

The wide surface supports the preparation of several portions during high-volume service periods.

Catering Operations

The appliance can be integrated into commercial hot-food production lines.

Restaurants and Cafés

It is suitable for facilities requiring a countertop electric griddle without an integrated floor stand.

Technical Specifications

• Product type: Countertop electric smooth griddle.
• Model: FT98ELCT.
• Cooking plate: Smooth and chrome plated.
• Body material: 304 stainless steel.
• Cooking surface dimensions: 735×700mm.
• Temperature range: 110°C to 280°C.
• Temperature control: Thermostatic.
• Front cold zone: 65mm.
• Grease drain hole diameter: 40mm.
• Grease collection tub capacity: 1.5 litres.
• Water column accessory: Top designed to accommodate it.
• Power: 15000W.
• Voltage: 380V.
• Electrical connection: 3N.
• Frequency: 60Hz.
• Width: 80cm.
• Depth: 92cm.
• Height: 25cm.
• Weight: 115kg.

Why Choose This Chrome Griddle?

This unit is suitable for commercial kitchens requiring a smooth chrome cooking plate in a countertop format. Its wide surface, adjustable temperature, front cold zone and grease collection system support organised cooking and cleaning operations.
