Electric Triple Deck Bakery Oven 9 Trays from Anvil

Electric Triple Deck Bakery Oven 9 Trays

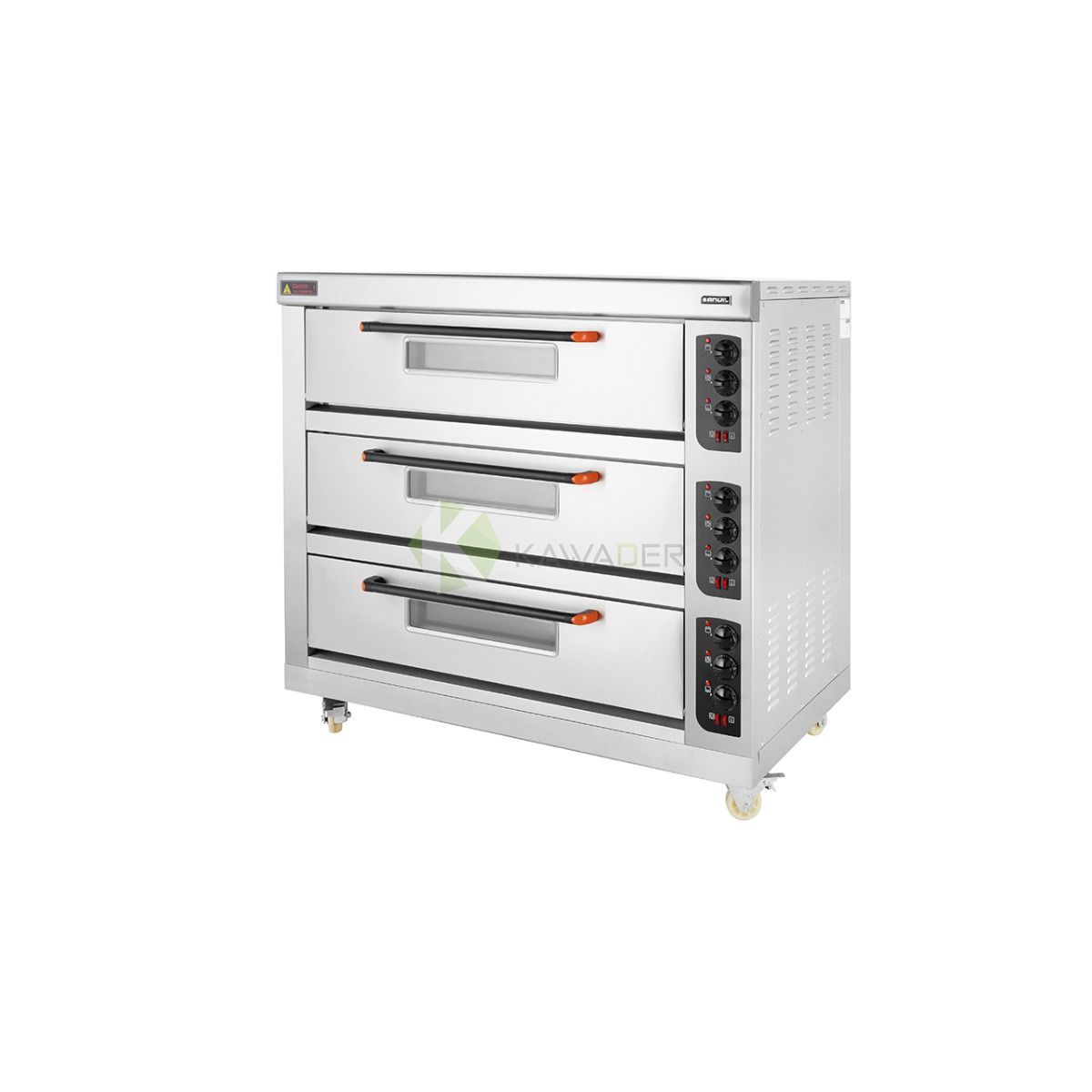

The Electric Triple Deck Bakery Oven 9 Trays is a floor-standing stainless steel baking oven featuring three separate chambers and a total capacity of 9 baking trays.

Each deck accommodates three 600 × 400 mm trays, providing a practical configuration for high-volume bakery and food production operations.

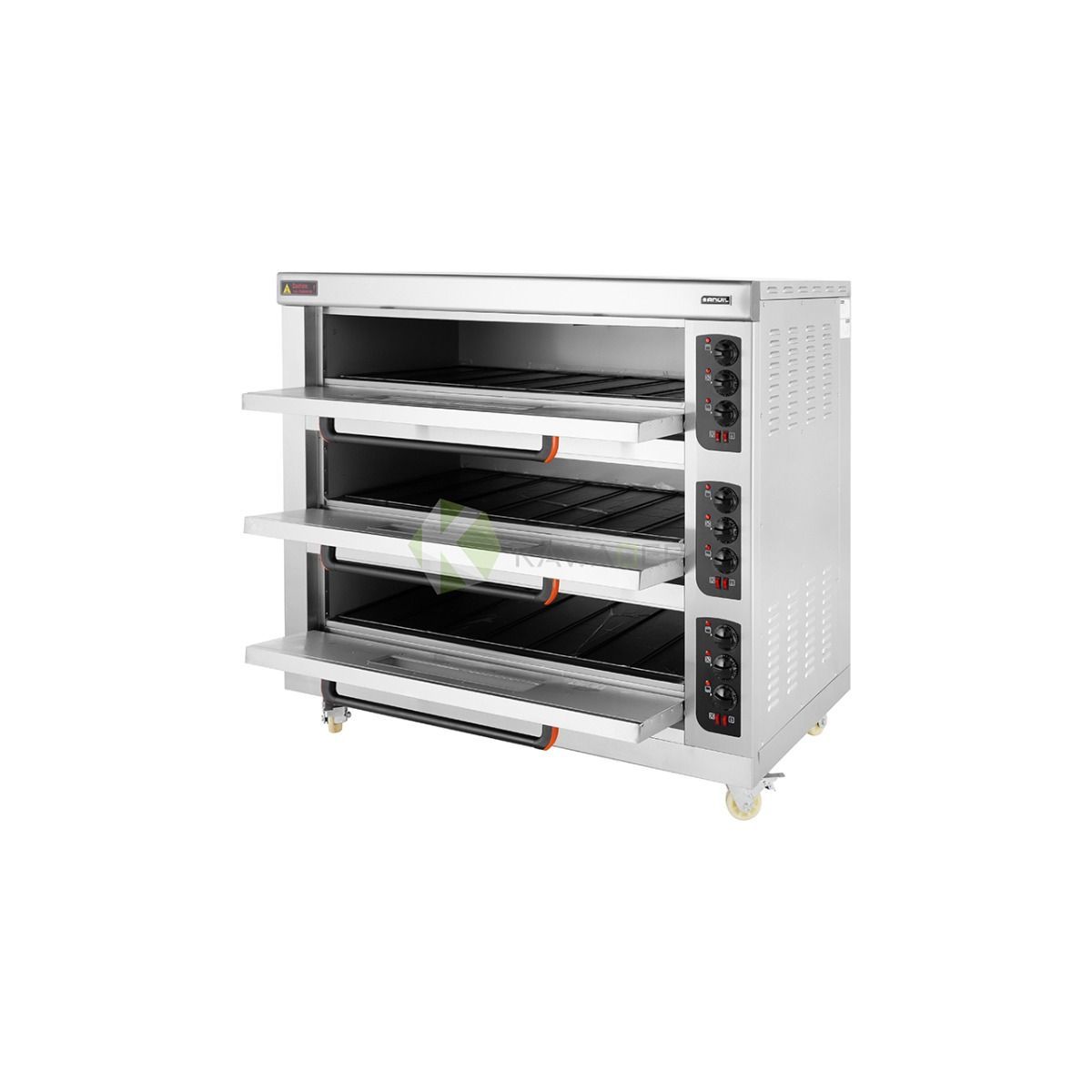

Three Decks with 9-Tray Capacity

The Triple Deck Oven features three baking chambers, each measuring 1480 mm wide × 660 mm deep × 200 mm high.

Each deck accommodates three baking trays measuring 600 × 400 mm, providing a total capacity of 9 trays.

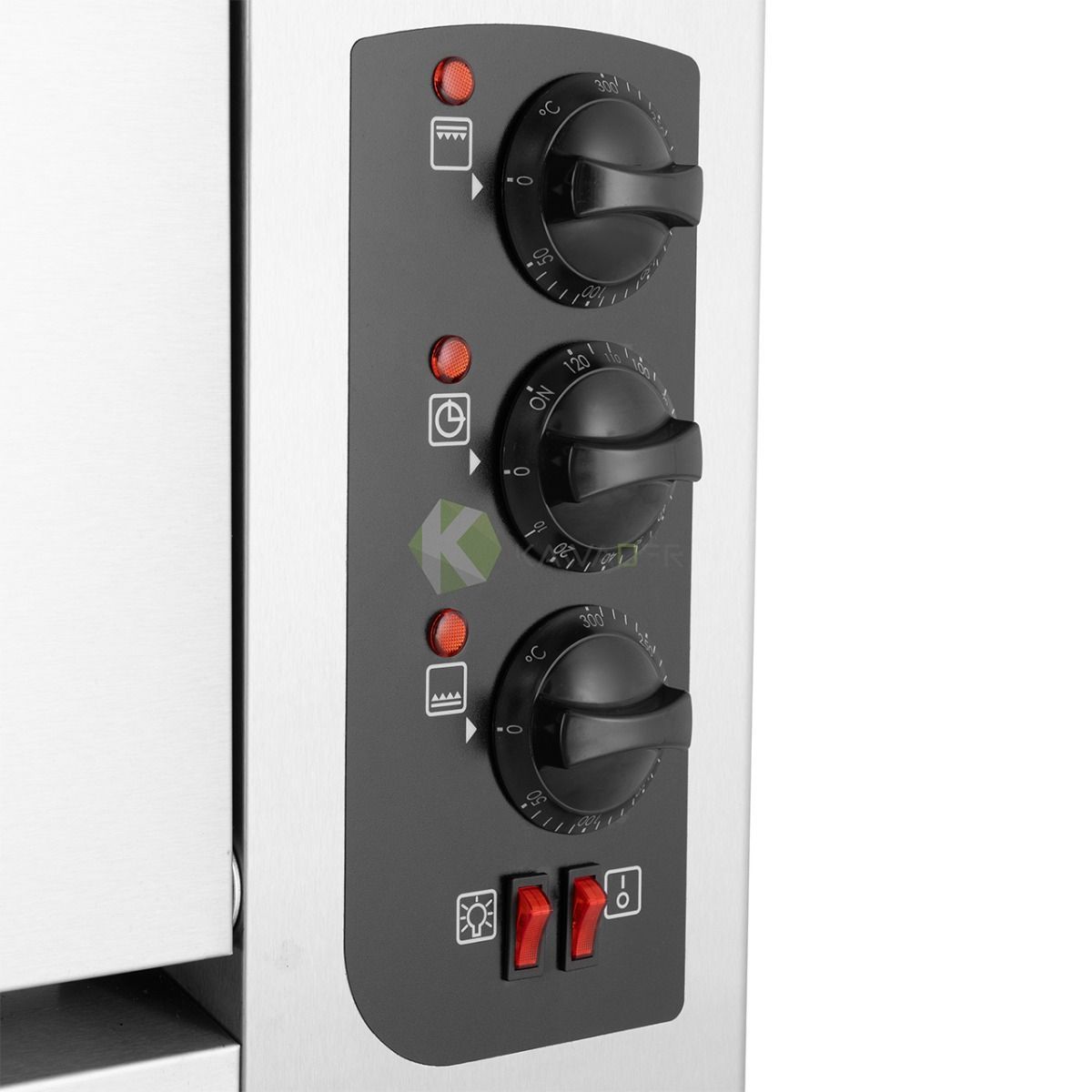

9 Thermostatic Control Knobs

The Electric Deck Oven features 9 thermostatic knobs for precise temperature control.

The supplied Arabic specifications indicate independent control of the upper and lower heating sections of each deck, providing flexibility when adjusting baking conditions.

Temperature up to 300°C

The 9 Tray Bakery Oven provides a wide operating temperature range reaching up to 300°C, supporting different baking requirements.

27kW Electric Power

The Commercial Baking Oven operates at 27,000W (27kW) with a 380V, 3P+N electrical connection.

The floor-standing unit measures 1640 mm wide × 895 mm deep × 1470 mm high and weighs 325 kg.

Features

• Triple deck configuration.
• 3 baking chambers.
• Total capacity of 9 trays.
• 3 trays per deck.
• 600 × 400 mm tray size.
• 9 thermostatic control knobs.
• Temperature up to 300°C.
• Stainless steel construction.
• Floor-standing design.
• 27kW electric power.
• 380V electrical supply.
• 3P+N connection.

Ideal For

• Professional Bakeries.
• Pastry Shops.
• Restaurants.
• Hotels.
• Central Kitchens.
• Catering Operations.
• High-Volume Baking Applications.

Technical Specifications

• Product Type: Electric Triple Deck Bakery Oven.
• Number of Decks: 3.
• Number of Chambers: 3.
• Total Tray Capacity: 9 Trays.
• Trays per Deck: 3.
• Tray Size: 600 × 400 mm.
• Chamber Dimensions (W × D × H): 1480 × 660 × 200 mm each.
• Thermostatic Controls: 9 Knobs.
• Maximum Temperature: 300°C.
• Construction: Stainless Steel.
• Installation: Floor Standing.
• Power: 27,000 W / 27 kW.
• Voltage: 380 V.
• Electrical Connection: 3P+N.
• Overall Dimensions (W × D × H): 1640 × 895 × 1470 mm.
• Weight: 325 kg.
